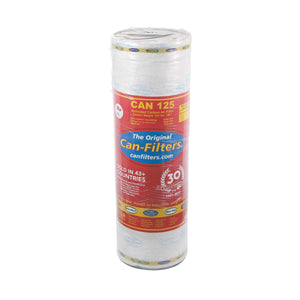

CLEARANCE: Can-Filter 125 Carbon Filter

At a Glance

Each Original Can-Filter® uses the most conceptually sound, granular carbon, packed-bed design to deliver the best performing carbon filter on the market. Even with the industry’s thickest carbon bed, at 2.5 inches, the Can Original provides some of the lowest pressure drops, even on smaller size filters. This hefty granular carbon bed effectively makes the Original filter the “biggest sponge” for VOC removal, capable of holding massive amounts of contaminants, leading to a lifespan that leaves other filters in the dust. The Original Can-Filter® is designed for the control of VOCs (paint fumes, hydrocarbons, etc.), odors, and other gaseous contaminants. Built with the same proven packed bed design and granular virgin activated carbon we've used for 30 years, this line of time-tested activated carbon air filters sets the standard for long life, consistent performance, and low pressure drop. Rated at a conservative 0.1 sec contact time, the Original Can-Filter® provides excellent value and confidence.

Technical Specifications

• Max Exhaust CFM: 1020 CFM / 1700 m³/h @ 0.1 sec contact time
• Max Recirculating (Scrubbing) CFM: 2040 CFM / 3400 m³/h
• Recommended Min Airflow: 510 CFM / 850 m³/h
• Prefilter: Yes
• Flange: 8", 10", 12", 14"
• Dimensions (with pre-filter):
  • Outside Diameter: 42 cm / 16.5"
  • Height: 125 cm / 49.2"
• Carbon Bed Depth: 6.5 cm / 2.56"
• Max Operating Temp: 80ºC / 176ºF
• Pressure Drop at Max CFM: 180 Pa / 0.75" wg

Recommended Fans

• Exhaust:

  • Max-Fan 8"
  • Can-Fan 8" HO
  • Q-Max 8" (speed 1, 2, 3)
  • Can-Fan 10" HO
  • Pro-Series 8" (speed 1, 2, 3)
  • Max-Fan 8" HO (speed 1, 2, 3)
  • Max-Fan 10"
  • Q-Max 10" (speed 1, 2, 3)
  • Can-Fan 12" HO

• Recirculating:

  • Q-Max 12"
  • Max-Fan 12"
  • Max-Fan 14"
