• APPLICATIONS

  This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

• Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
• Intelligent controller with temperature and humidity programming, fan speed control, timer, and alarm system.
• Mixed flow design combined with a PWM-controlled EC-motor for truly quiet and energy-efficient performance.
• The kit also includes a corded sensor probe, AC power plug, two duct clamps, and required mounting hardware.

PRODUCT DESCRIPTION

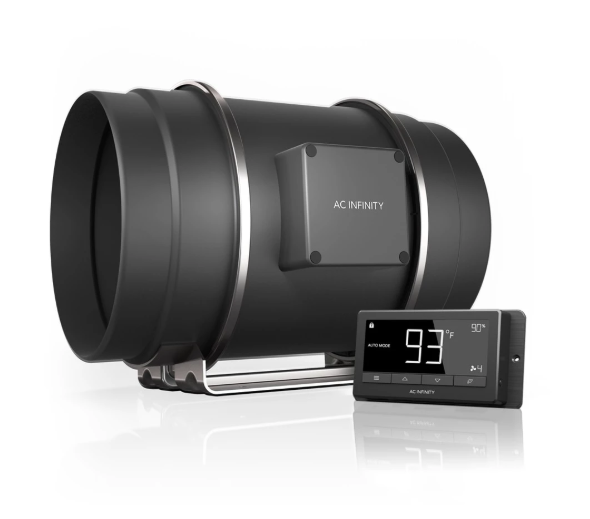

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets.

Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. It contains an EC-motor with PWM-control for quiet and energy-efficient performance.

Pulse-width modulation (PWM), is a method of reducing the average power delivered by an electrical signal, by effectively chopping it up into discrete parts.

The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance.

Includes an intelligent controller that features advanced programming and functions.

Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, all necessary mounting hardware, and a corded AC plug adapter to power the unit through a standard outlet.

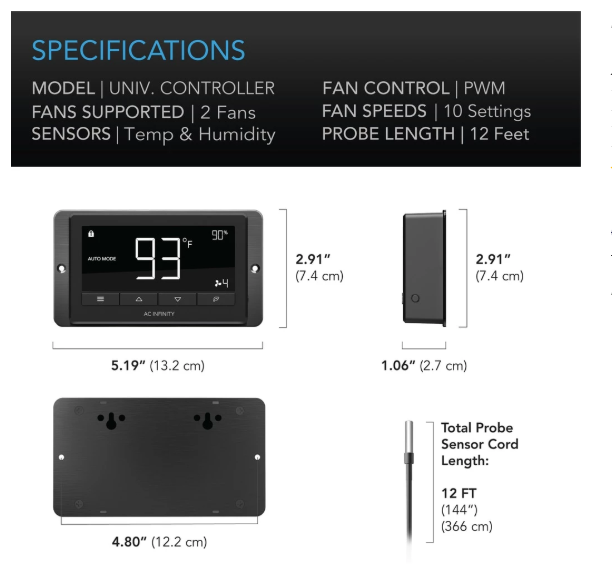

INTELLIGENT CONTROLLER

The controller can be programmed to adjust fan speeds to respond to varying high and low temperatures, and humidity. For ventilation applications, the controller can be set to run continuously or triggered to run at customizable speeds when given power, due to its backup memory capability.

Additional features include a countdown timer, alarm system, and eco-mode. Includes a detachable 12-foot precision probe that is water-resistant.

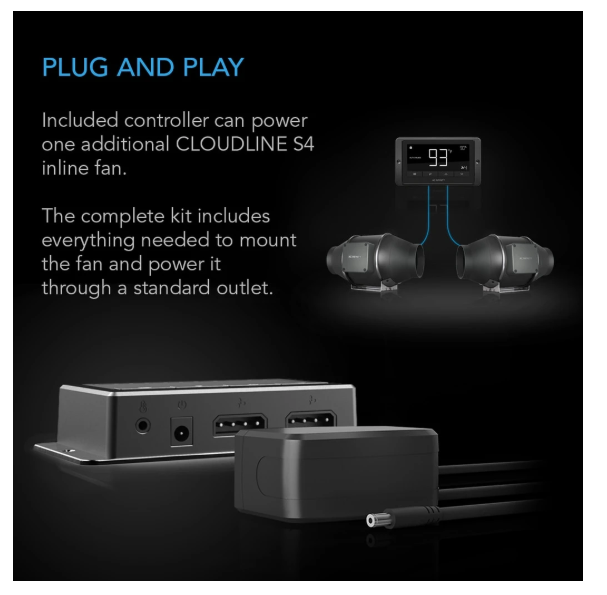

This smart controller can connect to an additional CLOUDLINE Series fan to share the same programming and power source.

QUIET AND ENERGY EFFICIENT DESIGN

Unlike common duct fans that use an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise.

In addition, the duct fan uses a mixed-flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction.

The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
